Custom GH-9026 IP65 dampproof light

Home / Product / IP65 LED Triproof light / GH-9026 IP65 dampproof light

GH-9026 IP65 dampproof light

•Ristar bulkhead adopts high lumen SMD2835 LED,high light transmission polycarbonate diffuser with even light output.
•Model S Model M & Model L to options.

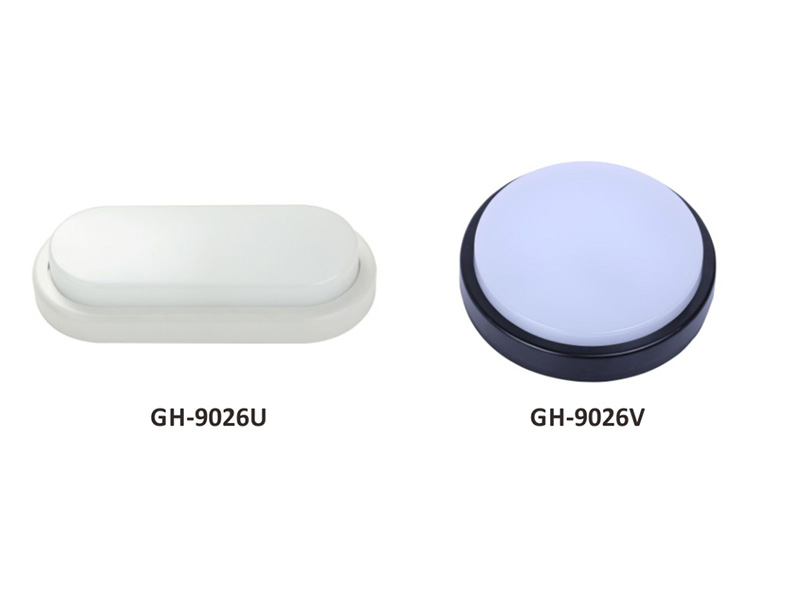

•Two shapes (Round and Ellipse) to options,Microwave Sensor version(MS) available for Round shape.
•IP54 waterproof structural design, idea I replacement for halogen in damp locations.
•Life expectancy up to 30,000 hours,with 3 years warranty.
•Suitable for commercial industrial and residential applications.


Product Description

Code Voltage Power Lumen Sensor LED Q'ty(pcs)
GH-9026-SU AC220-240V 8W 650LM - 44
GH-9026-MU AC220-240V 12W 950LM - 66
GH-9026-LU AC220-240V 18W 1500LM - 96
GH-9026-SV AC220-240V 8W 650LM - 44
GH-9026-SV-MS AC220-240V 8W 650LM Yes 44
GH-9026-MV AC220-240V 12W 950LM - 72
GH-9026-MV-MS AC220-240V 12W 950LM Yes 72
GH-9026-LV AC220-240V 18W 1500LM - 108
GH-9026-LV-MS AC220-240V 18W 1500LM Yes 108

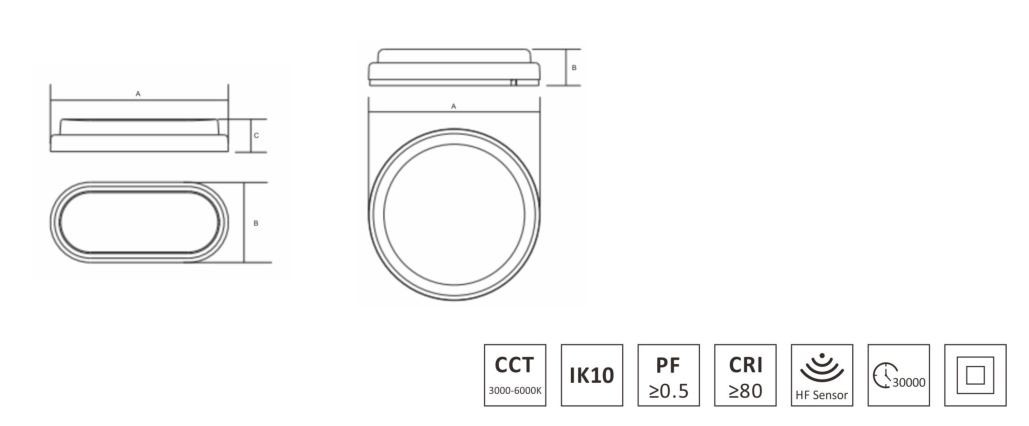

Base-Cover Dimensions(mm)AxBxC Net Weight(kg) Carton Size Q'ty/CTN(pcs)
PC-PC 4)200x99x40 0.18 475x225x225 20
PC-PC 4)200x99x40 0.18 475x225x225 20
PC-PC 4>230xl04x43 0.25 505x235x255 20
PC-PC 4)174x48 0.25 375x290x375 20
PC-PC 4)174x48 0.33 375x290x375 20
PC-PC 4)210x48 0.35 445x290x450 20
PC-PC 4)210x48 0.38 445x290x450 20
PC-PC 4)238x50 0.45 505x300x500 20
PC-PC <J)238x50 0.48 505x300x500 20

Ningbo Fenghua Lamp Co., Ltd.

In Zhangqi town , Cixi, China, bordering east and famous Beilun port, west to the world’s longest Hangzhou Bay Bridge, is connected with the sea and air transportation is convenient. Ningbo Fenghua Lamp Co.,Ltd is professional GH-9026 IP65 dampproof light manufacturers and GH-9026 IP65 dampproof light suppliers in China. FengHua lighting have owned R&D team, complete production line and strict quality control system and sales team. For customer’s requirements, company is certificated by ISO9001 and ISO14001. All of our products have been approved by CE, CB ,SAA, etc. Company adhering to the“dedicated, win-win beyond” as operation policy, hope to go green and environmental lighting in future is our goals, Fenghua, Light your life.
