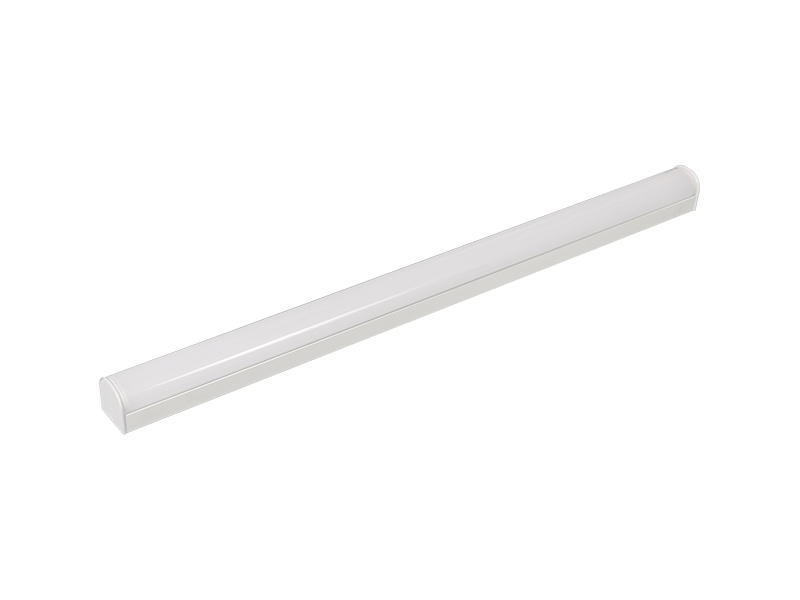

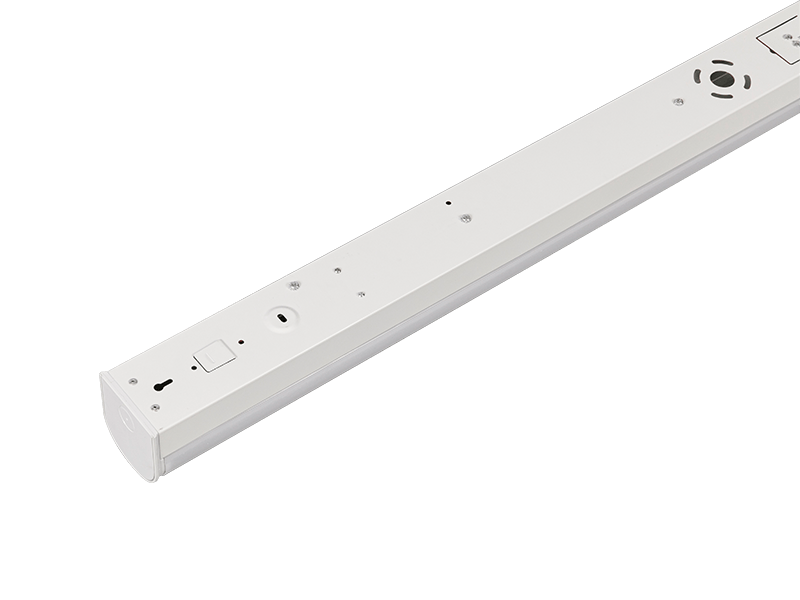

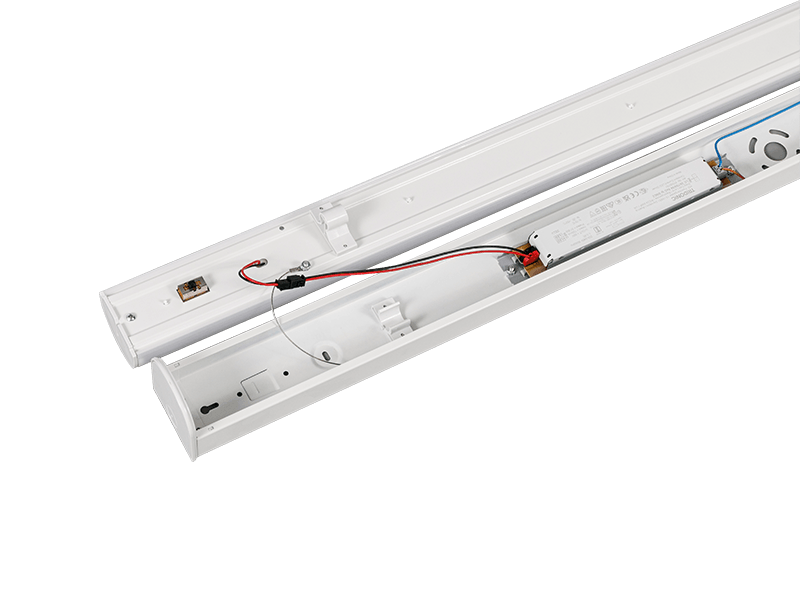

GHK IP20 Led Batten


Product Description

Model L(mm) W(mm) H(mm) LF(mm)
GH106K 585 70 70 410
GH112K 1135 70 70 870
GH115K 1465 70 70 1197

Code Input Voltage Output power LED CCT CRI LED quantity Luminous flux  IK IP Rating Dimensions mm
Line Rating L W H LF
GH106K 220-240V  50/60HZ 1 PCB 20W 2835 3000K-6500K ≥80 64 2400lm 08 65 585 70 70 410
GH112K 220-240V  50/60HZ 1 PCB 40W 2835 3000K-6500K ≥80 128 4800lm 08 65 1135 70 70 870
GH115K 220-240V  50/60HZ 1 PCB 50W 2835 3000K-6500K ≥80 136 6000lm 08 65 1465 70 70 1197

Spec:1.IP20 LED batten
         2.2ft 4ft 5ft 6ft
         3.Metal with Opal PC diffuser
         4.130 lumen/watt

Option:1.Emergency Kits
            3.Dual Powers
            4.CCT changeable

Ningbo Fenghua Lamp Co., Ltd.

In Zhangqi town , Cixi, China, bordering east and famous Beilun port, west to the world’s longest Hangzhou Bay Bridge, is connected with the sea and air transportation is convenient. Ningbo Fenghua Lamp Co.,Ltd is professional GHK IP20 Led Batten manufacturers and GHK IP20 Led Batten suppliers in China. FengHua lighting have owned R&D team, complete production line and strict quality control system and sales team. For customer’s requirements, company is certificated by ISO9001 and ISO14001. All of our products have been approved by CE, CB ,SAA, etc. Company adhering to the“dedicated, win-win beyond” as operation policy, hope to go green and environmental lighting in future is our goals, Fenghua, Light your life.
